EBCC

EBCC (Error-Bounded Climate-data Compressor) ^[1] combines JPEG2000 image compression with wavelet-based compression of residuals to achieve high compression ratios. EBCC can bound the pointwise absolute and range-relative error, though the error bound can sometimes be violated because of rounding errors. EBCC can compress two- or higher-dimensional 32 bit floating-point data, where the last two dimensions must be at least of size $32 \times 32$ .

from pathlib import Path

import netCDF4
import numpy as np
import xarray as xr

data = Path("data")

import earthkit.plots

from quickplot import quickplot

Importing the `Ebcc` compressor¶

from numcodecs_wasm_ebcc import Ebcc

?Ebcc

Init signature: Ebcc(base_cr, residual, _version='0.1.0', error=None)
Docstring:
Codec providing compression using EBCC.

EBCC combines JPEG2000 compression with error-bounded residual compression.

Arrays that are higher-dimensional than 3D are encoded by compressing each
3D slice with EBCC independently. Specifically, the array's shape is
interpreted as `[.., depth, height, width]`. If you want to compress 3D
slices along three different axes, you can swizzle the array axes
beforehand.

Parameters
----------
base_cr : ...
    JPEG2000 positive base compression ratio
residual : ...
     - "jpeg2000-only": No residual compression - base JPEG2000 only

     - "absolute": Residual compression with absolute maximum error bound

     - "relative": Residual compression with relative error bound
_version : ..., optional, default = "0.1.0"
    The codec's encoding format version. Do not provide this parameter explicitly.
error : ..., optional
File:           ~/egu26-compression-sc2.5/.venv/lib/python3.13/site-packages/numcodecs_wasm_ebcc/__init__.py
Type:           ABCMeta
Subclasses:

Targeting a specific compression ratio¶

EBCC can target a specific compression ratio using:

cr = 10  # x10 compression

Ebcc(base_cr=cr, residual="jpeg2000-only")

Ebcc(residual='jpeg2000-only', base_cr=10.0, _version='0.1.0')

Bounding the pointwise absolute error¶

EBCC can bound the absolute error using:

eb_abs = 1.0

base_cr = 100  # default internal base compression ratio, no need to tune

Ebcc(base_cr=base_cr, residual="absolute", error=eb_abs)

Ebcc(residual='absolute', error=1.0, base_cr=100.0, _version='0.1.0')

Bounding the pointwise range-relative error¶

EBCC can bound the range-relative error using:

eb_range_rel = 0.01  # 1% of max(data) - min(data)

base_cr = 100  # default internal base compression ratio, no need to tune

Ebcc(base_cr=base_cr, residual="relative", error=eb_range_rel)

Ebcc(residual='relative', error=0.01, base_cr=100.0, _version='0.1.0')

Bounding the pointwise relative error¶

The easiest way to bound the pointwise relative error with EBCC is to transform the relative error bound into an absolute error bound ^[2] using a metacompressor such as the pw_rel_compressor_plugin in LibPressio ^[3] or the numcodecs_pw_ratio.PointwiseRatioErrorBoundedCodec port:

from numcodecs_pw_ratio import PointwiseRatioErrorBoundedCodec
from numcodecs_wasm_zstd import Zstd

eb_rel = 0.01

base_cr = 100  # default internal base compression ratio, no need to tune

PointwiseRatioErrorBoundedCodec(
    # transform pointwise relative error bound into pointwise ratio error bound
    eb_ratio=1 + eb_rel,
    # mark how the absolute error is configured
    eb_abs_marker="$eb_abs",
    # lossy compressor that will use an absolute error bound
    log_codec={
        **Ebcc(base_cr=base_cr, residual="absolute", error=4.2).get_config(),
        "error": "$eb_abs",
    },
    # lossless compressor for compressing the data signs
    sign_codec=Zstd(level=3),
)

PointwiseRatioErrorBoundedCodec(eb_ratio=1.01, eb_abs_marker='$eb_abs', log_codec={'id': 'ebcc.rs', 'residual': 'absolute', 'error': '$eb_abs', 'base_cr': 100.0, '_version': '0.1.0'}, sign_codec=Zstd(level=3, _version='0.1.0'))

Preserving NaN Missing Values¶

EBCC itself does not support preserving infinite and NaN values and raises an exception when compressing data that includes non-finite values. A filter such as numcodecs_replace.ReplaceFilterCodec can be used to replace all non-finite values before compressing with EBCC, though this will not recreate these values during decompression:

from numcodecs_combinators.stack import CodecStack
from numcodecs_replace import Replacement, ReplaceFilterCodec

eb_abs = 1.0

base_cr = 100  # default internal base compression ratio, no need to tune

CodecStack(
    ReplaceFilterCodec(
        replacements={
            np.nan: "finite_mean",
            -np.inf: "finite_min",
            np.inf: "finite_max",
        }
    ),
    Ebcc(base_cr=base_cr, residual="absolute", error=eb_abs),
)

CodecStack(ReplaceFilterCodec(replacements={nan: 'finite_mean', -inf: 'finite_min', inf: 'finite_max'}), Ebcc(residual='absolute', error=1.0, base_cr=100.0, _version='0.1.0'))

Example¶

# Load the data
ds = xr.open_dataset(
    data / "hplp" / "hplp_sfc_regridded_t_025deg_levels_steps_204_216_228_240.nc",
    engine="netcdf4",
    decode_timedelta=True,
)
da = ds["2t"]

eb_range_rel = 0.01  # 1% of max(data) - min(data)

base_cr = 100  # default internal base compression ratio, no need to tune

codec = Ebcc(base_cr=base_cr, residual="relative", error=eb_range_rel)

# encode and decode the data
# EBCC raises an exception when the last dimension exceeds 2047,
#  or if the product of the second-to-last dimension with any of the previous
#  dimensions exceeds 2047
# so we manually partition along the first dimension here
da_enc1 = codec.encode(da.values[:2].astype(np.float32))
da_enc2 = codec.encode(da.values[2:].astype(np.float32))
da_dec = da.copy(
    data=np.concat([codec.decode(da_enc1), codec.decode(da_enc2)]).astype(da.dtype)
)

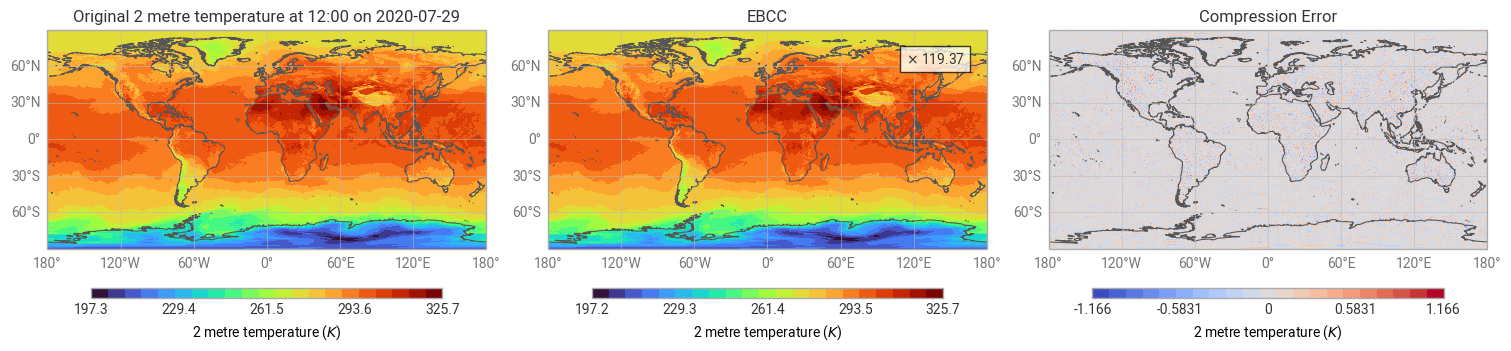

# plot a comparison figure
fig = earthkit.plots.Figure(
    size=(15, 4),
    rows=1,
    columns=3,
)

quickplot(da, fig.add_map(0, 0), title="Original {default_title}")
quickplot(
    da_dec,
    fig.add_map(0, 1),
    title="EBCC",
    cr=da.nbytes / (np.array(da_enc1).nbytes + np.array(da_enc2).nbytes),
)
quickplot(da_dec - da, fig.add_map(0, 2), error=True, title="Compression Error")

fig.show()

Footnotes¶

Huang, L., Fusco, L., Scheidl, F., Zibell, J., Sprenger, M. A., Schemm, S., & Hoefler, T. (2025). Error bounded compression for weather and climate applications. arXiv. Available from: Huang et al. (2025).
↩
Liang, X., Di, S., Tao, D., Chen, Z., & Cappello, F. (2018). An Efficient Transformation Scheme for Lossy Data Compression with Point-Wise Relative Error Bound. 2018 IEEE International Conference on Cluster Computing (CLUSTER), 179–189. Available from: Liang et al. (2018).
↩
Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. Available from: Underwood et al. (2021).
↩

References¶

Huang, L., Fusco, L., Scheidl, F., Zibell, J., Sprenger, M. A., Schemm, S., & Hoefler, T. (2025). Error bounded compression for weather and climate applications. arXiv. 10.48550/ARXIV.2510.22265
Liang, X., Di, S., Tao, D., Chen, Z., & Cappello, F. (2018). An Efficient Transformation Scheme for Lossy Data Compression with Point-Wise Relative Error Bound. 2018 IEEE International Conference on Cluster Computing (CLUSTER), 179–189. 10.1109/cluster.2018.00036
Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. 10.1109/drbsd754563.2021.00005
