LibPressio

LibPressio ^[1] is a compression framework that simplifies compressor configuration and targets deployment in high-performance computing. LibPressio provides common interfaces for several types of plugins, including data I/O, data domains, compressors, metrics, and parallelisation. LibPressio also provides convenient global configuration options e.g. for bounding the pointwise absolute error, such that users do not need to learn the various compressor-specific configuration formats.

The native installation of LibPressio can be configured to include wrappers for over 50 scientific compressors and metacompressors, including ZFP, SZ3, and SPERR. The initial version provided in numcodecs-wasm-pressio does not include most compressors supported by the native version. The auto-tuning meta-compressor, OptZConfig ^[2], is also not yet included.

This product includes software produced by UChicago Argonne, LLC under Contract No. DE-AC02-06CH11357 with the Department of Energy.

from pathlib import Path

import netCDF4
import numpy as np
import xarray as xr

data = Path("data")

import earthkit.plots

from quickplot import quickplot

Importing the `Pressio` meta-compressor¶

from numcodecs_wasm_pressio import Pressio

?Pressio

Init signature:
Pressio(
    compressor_id,
    _version='1.0.0',
    compressor_config={},
    early_config={},
    metric_results={},
    name=None,
)
Docstring:
Pressio codec which applies the identity function, i.e. passes through the
input unchanged during encoding and decoding.

Parameters
----------
compressor_id : ...
    The id of the compressor
_version : ..., optional, default = "1.0.0"
    The codec's encoding format version. Do not provide this parameter explicitly.
compressor_config : ..., optional, default = {}
    Configuration for the compressor
early_config : ..., optional, default = {}
    Configuration for the structure of the compressor
metric_results : ..., optional, default = {}
    Results of the compressor metrics (output-only)
name : ..., optional, default = None
    Optional name for the compressor when used in hierarchical mode
File:           ~/egu26-compression-sc2.5/.venv/lib/python3.13/site-packages/numcodecs_wasm_pressio/__init__.py
Type:           ABCMeta
Subclasses:

Supported Compressors¶

The complete list of supported compressors that were enabled during the build of LibPressio can be inspected by providing an invalid compressor id:

try:
    Pressio(compressor_id="???")
except Exception as err:
    print(err)


 1 | {"compressor_id":"???"}
   |                        ^ invalid compressor id ???, choose one of: `binning`, `bzip2`, `cast`, `chunking`, `delta_encoding`, `lambda_fn`, `linear_quantizer`, `log_transform`, `mask_binning`, `mask_interpolation`, `noop`, `pipeline`, `pressio`, `pw_rel`, `remove_background`, `repeat`, `resize`, `roibin`, `sample`, `switch`, `threshold_small`, `transpose` at line 1 column 23

Bounding the pointwise absolute error¶

Pressio can bound the absolute error for a supporting compressor, e.g. linear quantisation, using:

eb_abs = 1.0

Pressio(
    compressor_id="linear_quantizer",
    early_config={"linear_quantizer:compressor": "bzip2"},
    compressor_config={"pressio:abs": eb_abs},
)

Pressio(compressor_id='linear_quantizer', early_config={'linear_quantizer:compressor': 'bzip2'}, compressor_config={'bzip2:block_size_100k': 9, 'bzip2:metric': 'noop', 'bzip2:small': 0, 'bzip2:verbosity': 0, 'bzip2:work_factor': 30, 'linear_quantizer:auto_step': 0, 'linear_quantizer:compressor': 'bzip2', 'linear_quantizer:metric': 'noop', 'linear_quantizer:step': 1.0, 'metrics:copy_compressor_results': 1, 'metrics:errors_fatal': 1, 'pressio:abs': 1.0, 'pressio:lossless': 9, 'pressio:metric': 'noop'}, _version='1.0.0')

Bounding the range-relative error¶

Pressio can bound the range-relative error for a supporting compressor using:

eb_range_rel = 0.01

Pressio(compressor_id="...", compressor_config={"pressio:rel": eb_range_rel})

Bounding the pointwise relative error¶

Pressio can bound the relative error for a supporting compressor using:

eb_rel = 0.01

Pressio(compressor_id="...", compressor_config={"pressio:pw_rel": eb_rel})

Alternatively, the pw_rel meta-compressor plugin can be used to transform the relative error bound into an absolute error bound for a compressor that only supports absolute error bounds using:

eb_rel = 0.01

Pressio(
    compressor_id="pw_rel",
    early_config={
        "pw_rel:abs_comp": "linear_quantizer",
        "linear_quantizer:compressor": "bzip2",
        "pw_rel:sign_comp": "bzip2",
    },
    compressor_config={"pressio:pw_rel": eb_rel},
)

Pressio(compressor_id='pw_rel', early_config={'linear_quantizer:compressor': 'bzip2', 'pw_rel:abs_comp': 'linear_quantizer', 'pw_rel:sign_comp': 'bzip2'}, compressor_config={'bzip2:block_size_100k': 9, 'bzip2:metric': 'noop', 'bzip2:small': 0, 'bzip2:verbosity': 0, 'bzip2:work_factor': 30, 'linear_quantizer:auto_step': 0, 'linear_quantizer:compressor': 'bzip2', 'linear_quantizer:metric': 'noop', 'linear_quantizer:step': 0.0, 'metrics:copy_compressor_results': 1, 'metrics:errors_fatal': 1, 'pressio:abs': 0.0, 'pressio:lossless': 9, 'pressio:metric': 'noop', 'pressio:pw_rel': 0.009999999776482582, 'pw_rel:abs_comp': 'linear_quantizer', 'pw_rel:metric': 'noop', 'pw_rel:sign_comp': 'bzip2'}, _version='1.0.0')

Preserving Missing Values¶

LibPressio preserves NaN values if the underlying compressor preserves NaN values. If the underlying compressor raises an exception when the data includes NaN values, the mask_interpolation meta-compressor can be used to replace the NaN values with a fill value using:

da = xr.DataArray(data=np.array([1.0, np.nan, 2.0]))  # for example

Pressio(
    compressor_id="mask_interpolation",
    early_config={
        "mask_interpolation:compressor": "...",
    },
    compressor_config={
        "mask_interpolation:mask": np.isnan(da.values).tolist(),
        "mask_interpolation:mask_mode": "fill",
        "mask_interpolation:fill": np.nanmean(da),
    },
)

Pressio(compressor_id='mask_interpolation', early_config={'mask_interpolation:compressor': '...'}, compressor_config={'mask_interpolation:compressor': 'noop', 'mask_interpolation:fill': 1.5, 'mask_interpolation:mask': [False, True, False], 'mask_interpolation:mask_mode': 'fill', 'mask_interpolation:metric': 'noop', 'mask_interpolation:nthreads': 1, 'metrics:copy_compressor_results': 1, 'metrics:errors_fatal': 1, 'noop:metric': 'noop', 'pressio:metric': 'noop', 'pressio:nthreads': 1}, _version='1.0.0')

Example¶

# Load the data
ds = xr.open_dataset(
    data / "hplp" / "hplp_sfc_regridded_t_025deg_levels_steps_204_216_228_240.nc",
    engine="netcdf4",
    decode_timedelta=True,
)
da = ds["2t"]

eb_rel = 0.01  # 1%

codec = Pressio(
    compressor_id="pw_rel",
    early_config={
        "pw_rel:abs_comp": "linear_quantizer",
        "linear_quantizer:compressor": "bzip2",
        "pw_rel:sign_comp": "bzip2",
        "pressio:metric": "composite",
    },
    compressor_config={
        "pressio:pw_rel": eb_rel,
        # record some metrics about compression
        "composite:plugins": ["input_stats", "size", "max_error"],
    },
)

# encode and decode the data
da_enc = codec.encode(da.values)
da_dec = da.copy(data=codec.decode(da_enc, out=np.empty(da.shape, dtype=da.dtype)))

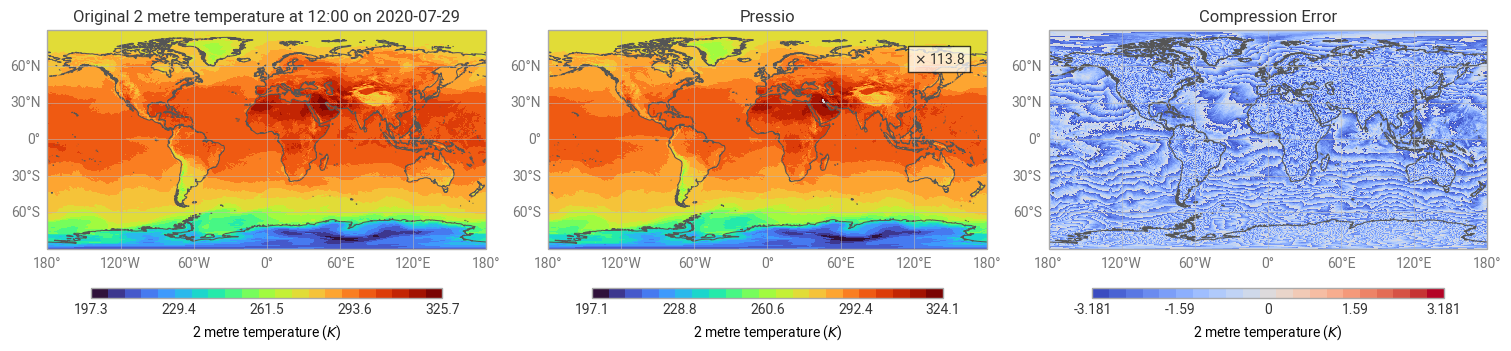

# plot a comparison figure
fig = earthkit.plots.Figure(
    size=(15, 4),
    rows=1,
    columns=3,
)

quickplot(da, fig.add_map(0, 0), title="Original {default_title}")
quickplot(
    da_dec, fig.add_map(0, 1), title="Pressio", cr=da.nbytes / np.array(da_enc).nbytes
)
quickplot(da_dec - da, fig.add_map(0, 2), error=True, title="Compression Error")

fig.show()

codec.get_config().get("metric_results", {})

{'input_stat:compress_input_dims': [[4], [721], [1440]],
 'input_stat:compress_input_types': [0],
 'input_stat:compress_output_dims': [[291958]],
 'input_stat:compress_output_types': [10],
 'input_stat:decompress_input_dims': [[291958]],
 'input_stat:decompress_input_types': [2],
 'input_stat:decompress_output_dims': [[4], [721], [1440]],
 'input_stat:decompress_output_types': [0],
 'max_error:max_error': 3.180715545728674,
 'max_error:max_error_index': 329940,
 'size:bit_rate': 0.5624094621667437,
 'size:compressed_size': 291958,
 'size:compression_ratio': 113.79609395872008,
 'size:decompressed_size': 33223680,
 'size:uncompressed_size': 33223680}

Footnotes¶

Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. In 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. Available from: Underwood et al. (2021).
↩
Underwood, R., Calhoun, J. C., Di, S., Apon, A., & Cappello, F. (2022). OptZConfig: Efficient parallel optimization of lossy compression configuration. IEEE Transactions on Parallel and Distributed Systems, 33(12), 3505–3519. Available from: Underwood et al. (2022).
↩

References¶

Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. 10.1109/drbsd754563.2021.00005
Underwood, R., Calhoun, J. C., Di, S., Apon, A., & Cappello, F. (2022). OptZConfig: Efficient Parallel Optimization of Lossy Compression Configuration. IEEE Transactions on Parallel and Distributed Systems, 33(12), 3505–3519. 10.1109/tpds.2022.3154096
