SZ3

SZ3 ^[1] is a prediction-based modular compressor that combines preprocessing, prediction, lossy quantisation, entropy coding, and lossless compression to provide high compression ratios. SZ3 can use several predictors based on Lorenzo prediction, regression, and spline interpolation. It can be configured to bound the pointwise absolute or range-relative error, either or both of them, the peak signal-to-noise ratio, or the $L_2$ norm.

Because of its modular design, SZ3 has been adadpted into many domain-specific compressors, and is continuously being improved with new predictors. A recent listing of many of the specialized compressors can be found in this survey.

This product includes software produced by UChicago Argonne, LLC under Contract No. DE-AC02-06CH11357 with the Department of Energy.

from pathlib import Path

import netCDF4
import numpy as np
import xarray as xr

data = Path("data")

import earthkit.plots

from quickplot import quickplot

Importing the `Sz3` compressor¶

from numcodecs_wasm_sz3 import Sz3

?Sz3

Init signature:
Sz3(
    eb_mode,
    _version='0.2.0',
    eb_abs=None,
    eb_l2=None,
    eb_psnr=None,
    eb_rel=None,
    predictor='interpolation-lorenzo',
)
Docstring:
Codec providing compression using SZ3

Parameters
----------
eb_mode : ...
     - "abs-and-rel": Errors are bounded by *both* the absolute and relative error, i.e. by
        whichever bound is stricter

     - "abs-or-rel": Errors are bounded by *either* the absolute or relative error, i.e. by
        whichever bound is weaker

     - "abs": Absolute error bound

     - "rel": Relative error bound

     - "psnr": Peak signal to noise ratio error bound

     - "l2": Peak L2 norm error bound
_version : ..., optional, default = "0.2.0"
    The codec's encoding format version. Do not provide this parameter explicitly.
eb_abs : ..., optional
    Absolute error bound
eb_l2 : ..., optional
    Peak L2 norm error bound
eb_psnr : ..., optional
    Peak signal to noise ratio error bound
eb_rel : ..., optional
    Relative error bound
predictor : ..., optional, default = "interpolation-lorenzo"
    Predictor
File:           ~/egu26-compression-sc2.5/.venv/lib/python3.13/site-packages/numcodecs_wasm_sz3/__init__.py
Type:           ABCMeta
Subclasses:

Available Predictors¶

interpolation: interpolation-only
interpolation-lorenzo: interpolation and first-order Lorenzo (default)
regression: regression-only
lorenzo2: second-order Lorenzo
lorenzo2-regression: second-order Lorenzo and regression
lorenzo: first-order Lorenzo
lorenzo-regression: first-order Lorenzo and regression
lorenzo-lorenzo2: first-order and second-order Lorenzo
lorenzo-lorenzo2-regression: first-order and second-order Lorenzo and regression

The list of supported predictors in numcodecs-wasm-sz3 can be inspected by providing an invalid predictor name:

try:
    Sz3(predictor="???")
except Exception as err:
    print(err)


 1 | {"predictor":"???"}
   |                   ^ unknown variant `???`, expected one of `interpolation`, `interpolation-lorenzo`, `regression`, `lorenzo2`, `lorenzo2-regression`, `lorenzo`, `lorenzo-regression`, `lorenzo-lorenzo2`, `lorenzo-lorenzo2-regression` at line 1 column 18

Additional predictors and the ability to customize and extend the composition of compressors with new modules are available via SZ3’s C++ API ^[2].

Bounding the pointwise absolute error¶

SZ3 can bound the absolute error using:

eb_abs = 1.0

Sz3(eb_mode="abs", eb_abs=eb_abs)

Sz3(predictor='interpolation-lorenzo', eb_mode='abs', eb_abs=1.0, _version='0.2.0')

Bounding the pointwise range-relative error¶

SZ3 can bound the range-relative error using:

eb_range_rel = 0.1

Sz3(eb_mode="rel", eb_rel=eb_range_rel)

Sz3(predictor='interpolation-lorenzo', eb_mode='rel', eb_rel=0.1, _version='0.2.0')

Bounding the peak signal-to-noise ratio¶

SZ3 can bound the PSNR using:

psnr = 50  # dB

Sz3(eb_mode="psnr", eb_psnr=psnr)

Sz3(predictor='interpolation-lorenzo', eb_mode='psnr', eb_psnr=50.0, _version='0.2.0')

Bounding the pointwise relative error¶

The easiest way to bound the pointwise relative error with SZ3 is to transform the relative error bound into an absolute error bound ^[3] using a metacompressor such as the pw_rel_compressor_plugin in LibPressio ^[4] or the numcodecs_pw_ratio.PointwiseRatioErrorBoundedCodec port:

from numcodecs_pw_ratio import PointwiseRatioErrorBoundedCodec
from numcodecs_wasm_zstd import Zstd

eb_rel = 0.01

PointwiseRatioErrorBoundedCodec(
    # transform pointwise relative error bound into pointwise ratio error bound
    eb_ratio=1 + eb_rel,
    # mark how the absolute error is configured
    eb_abs_marker="$eb_abs",
    # lossy compressor that will use an absolute error bound
    log_codec={**Sz3(eb_mode="abs", eb_abs=4.2).get_config(), "eb_abs": "$eb_abs"},
    # lossless compressor for compressing the data signs
    sign_codec=Zstd(level=3),
)

PointwiseRatioErrorBoundedCodec(eb_ratio=1.01, eb_abs_marker='$eb_abs', log_codec={'id': 'sz3.rs', 'predictor': 'interpolation-lorenzo', 'eb_mode': 'abs', 'eb_abs': '$eb_abs', '_version': '0.2.0'}, sign_codec=Zstd(level=3, _version='0.1.0'))

The pw_rel technique ^[3] used by LibPressio was a feature previously included in SZ2 and will be restored in a future version of SZ3.

Preserving Missing Values¶

NaN values are automatically preserved by SZ3 in version v3.3.2, though this has been broken before ^[5]^[6].

Example¶

# Load the data
ds = xr.open_dataset(
    data / "hplp" / "hplp_sfc_regridded_t_025deg_levels_steps_204_216_228_240.nc",
    engine="netcdf4",
    decode_timedelta=True,
)
da = ds["2t"]

psnr = 50.0  # dB

codec = Sz3(eb_mode="psnr", eb_psnr=psnr)

# encode and decode the data
da_enc = codec.encode(da.values)
da_dec = da.copy(data=codec.decode(da_enc))

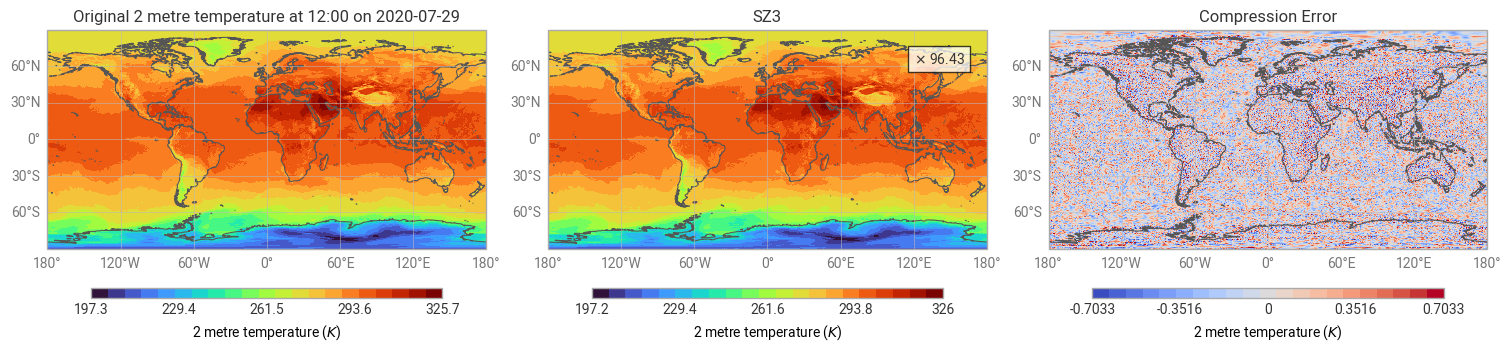

# plot a comparison figure
fig = earthkit.plots.Figure(
    size=(15, 4),
    rows=1,
    columns=3,
)

quickplot(da, fig.add_map(0, 0), title="Original {default_title}")
quickplot(
    da_dec, fig.add_map(0, 1), title="SZ3", cr=da.nbytes / np.array(da_enc).nbytes
)
quickplot(da_dec - da, fig.add_map(0, 2), error=True, title="Compression Error")

fig.show()

Footnotes¶

Liang, X., Zhao, K., Di, S., Li, S., Underwood, R., Gok, A. M., Tian, J., Deng, J., Calhoun, J. C., Tao, D., Chen, Z., & Cappello, F. (2022). SZ3: A modular framework for composing Prediction-Based Error-Bounded lossy compressors. IEEE Transactions on Big Data, 9(2), 485–498. Available from: Liang et al. (2023).
↩
https://github.com/szcompressor/SZ3
↩
Liang, X., Di, S., Tao, D., Chen, Z., & Cappello, F. (2018). An Efficient Transformation Scheme for Lossy Data Compression with Point-Wise Relative Error Bound. 2018 IEEE International Conference on Cluster Computing (CLUSTER), 179–189. Available from: Liang et al. (2018).
↩↩
Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. Available from: Underwood et al. (2021).
↩
Liang, X., Di, S., Tao, D., Chen, Z., & Cappello, F. (2018). An Efficient Transformation Scheme for Lossy Data Compression with Point-Wise Relative Error Bound. 2018 IEEE International Conference on Cluster Computing (CLUSTER), 179–189. Available from: Liang et al. (2018).
↩↩
szcompressor/SZ3#91
↩
Reichelt, T., Tyree, J., Klöwer, M., Dueben, P., Lawrence, B. N., Baker, A. H., Faghih-Naini, S., Hoefler, T., & Stier, P. (2026). ClimateBenchPress (v1.0): A Benchmark for Lossy Compression of Climate Data. EGUsphere [Preprint]. Available from: Reichelt et al. (2026).
↩

References¶

Liang, X., Zhao, K., Di, S., Li, S., Underwood, R., Gok, A. M., Tian, J., Deng, J., Calhoun, J. C., Tao, D., Chen, Z., & Cappello, F. (2023). SZ3: A Modular Framework for Composing Prediction-Based Error-Bounded Lossy Compressors. IEEE Transactions on Big Data, 9(2), 485–498. 10.1109/tbdata.2022.3201176
Di, S., Liu, J., Zhao, K., Liang, X., Underwood, R., Zhang, Z., Shah, M., Huang, Y., Huang, J., Yu, X., Ren, C., Guo, H., Wilkins, G., Tao, D., Tian, J., Jin, S., Jian, Z., Wang, D., Rahman, M. H., … Cappello, F. (2025). A Survey on Error-Bounded Lossy Compression for Scientific Datasets. ACM Computing Surveys, 57(11), 1–38. 10.1145/3733104
Liang, X., Di, S., Tao, D., Chen, Z., & Cappello, F. (2018). An Efficient Transformation Scheme for Lossy Data Compression with Point-Wise Relative Error Bound. 2018 IEEE International Conference on Cluster Computing (CLUSTER), 179–189. 10.1109/cluster.2018.00036
Underwood, R., Malvoso, V., Calhoun, J. C., Di, S., & Cappello, F. (2021). Productive and Performant Generic Lossy Data Compression with LibPressio. 2021 7th International Workshop on Data Analysis and Reduction for Big Scientific Data (DRBSD-7), 1–10. 10.1109/drbsd754563.2021.00005
Reichelt, T., Tyree, J., Klöwer, M., Dueben, P., Lawrence, B. N., Baker, A. H., Faghih-Naini, S., Hoefler, T., & Stier, P. (2026). ClimateBenchPress (v1.0): A Benchmark for Lossy Compression of Climate Data. 10.5194/egusphere-2026-60
